Tricorn - An early all-GRP cruising dinghy

The Tricorn dinghy was designed by Illingworth and Primrose in 1962. Since theirs was one of the most famous names in offshore racing yacht design at the time, she came with some impressive pedigree. The design brief appears to have been to create a low maintenance dinghy, capable of serious open water passage-making, that would be better and faster than Ian Proctor's well proven and famous Wayfarer class.

Back then in the early 60s there were very few dinghies purpose-designed for construction in GRP. Almost certainly this was the first boat to be designed by Illingworth and Primrose for this type of construction, and at the time the Wayfarer would only have been available in plywood, so although Angus Primrose had certainly designed dinghies before, the Tricorn brief must have come as a considerable new challenge. His approach, in common with most other designers who were learning to work with this little known material, was to make the boat strong and not to spare on materials. When you examine the layup of a Tricorn, you'll notice a predominance of woven rovings throughout, and lots of reinforcement in areas where a contemporary wooden or plywood dinghy might have had a tendency to develop stress cracks or other weakness.

Very unusually for such an early fibreglass boat, there is almost no wood, except for the tiller, rudder, and some backing pads for deck fittings. This may have been a bit too avant-garde for the times, since boat enthusiasts in those days would have expected quite a lot of visible wood trim, coamings, decks, floorboards, benches, hatches, etc. The all plastic Tricorn might have been regarded as just too space-age and factory produced, and this perception, as well as its price and the narrowness of its marketing concept, may have seriously limited sales.  I’m not sure how many were built, but it’s certain that few remain in serviceable condition.

Not that there was anything wrong with the performance of the Tricorn, nor its ability to shelter its crew of 2 adults, plus maybe a child, for overnight camping stops. Contemporary boat tests make it clear that Tricorn had the edge over the Wayfarer in both departments, although nowadays, after 50 years of Wayfarer class development, the Tricorn would probably struggle to keep up on some points.

Almost certainly, however, Tricorn would still show a Wayfarer a clean pair of heels to windward, since with her centreplate fully down she draws 1.6m (5ft 3in) to the Wayfarer's 1.17m (3ft 10in). She is also a few inches longer overall and carries around 1sqm more windward sail. Compared to the Wayfarer, Tricorn is noticeably less stable at rest, though she stiffens up when under way.

Tricorn's domed foredeck and short cabin roof enclose a cuddy with sitting space for 2 or 3 adults or sleeping space for 2 (in berths extending under the cockpit side benches). There would be just enough space left over in camping mode for a child of up to about 7 years old to stretch out. There's a large watertight locker aft, and two capacious cockpit side lockers, probably not really totally watertight in the event of capsize, but which resist rain, spray, and even a fair amount of solid water landing in the cockpit.

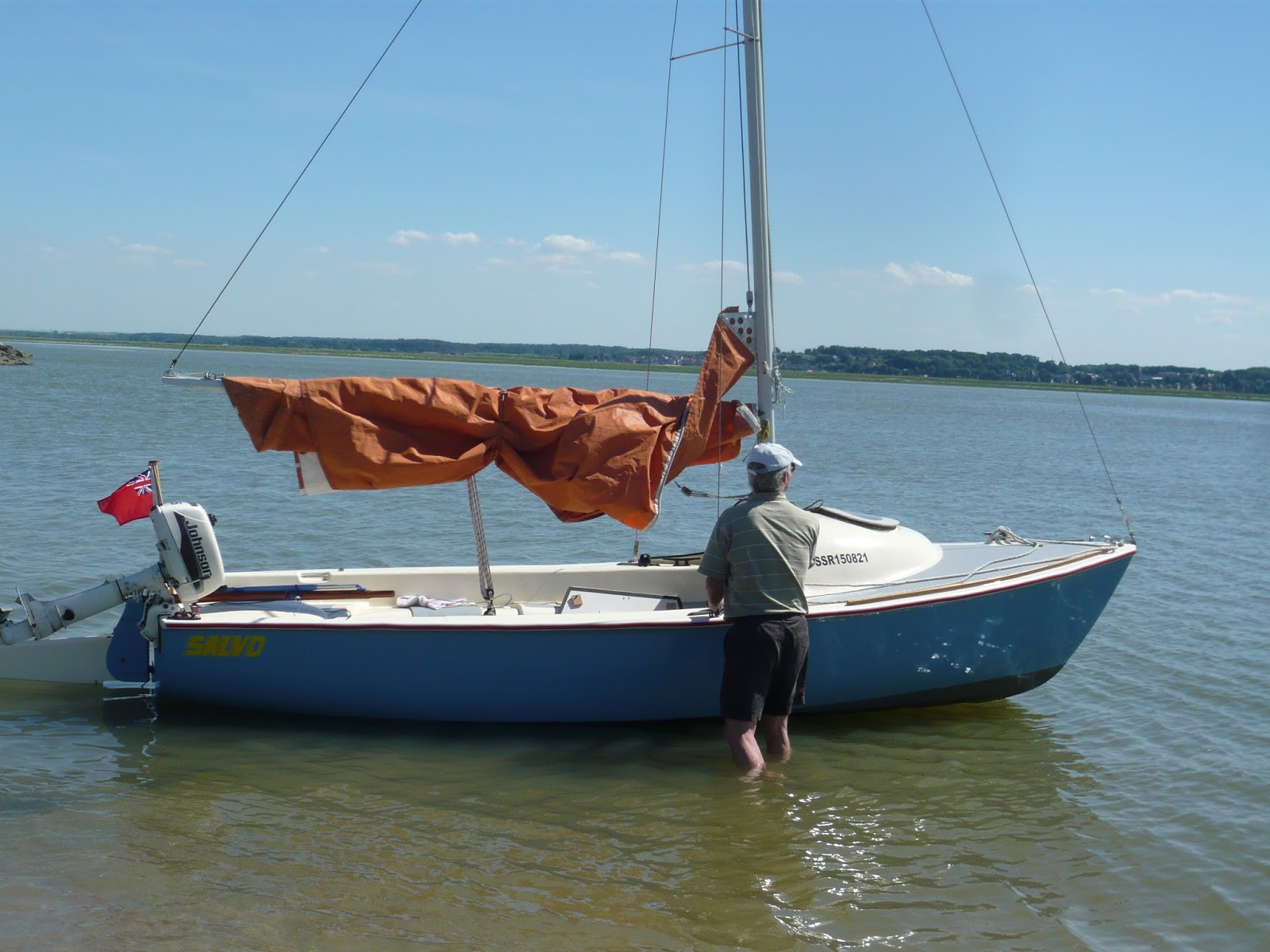

Some years ago, I found and bought an old Tricorn. It was very scruffy, had a hole in the bottom, and lacked its original moulded forehatch cover as well as the original winch for lifting the centreplate. This 1963 example had at some time been used as a sailing school boat and was fitted with a horrible non-original rusty steel plate, weighing in at 50kg or more, double the original design spec. In addition, the mainsail had been reduced in area by cutting the foot off it to a depth of about 1m. These modifications must have made her extremely slow and dull to sail.

Salvo is now back in sailing order with a few minor changes to her original specification. I changed the overweight rusty centreplate to one that weighs about 20kg, about the same as the original design, but mine is home-made from a sandwich of steel, epoxy and plywood. I had to give up on finding an original plate lifting winch and fitted a simple tackle instead. I made a forehatch cover from plywood and clear polycarbonate, and lastly, I changed from a transom mainsheet track to centre sheeting for no better reason than I was scared the sheet might foul on my outboard motor and cause a capsize. The old roller reefing boom was replaced by one from a Fireball, to which I fixed some fittings for slab reefing.

I made a new rudder blade cut from the plywood centreboard from an old Miracle dinghy, but it snapped in half in a fearsome tiderace in Brittany, so I have gone back to the original which I might reproduce in aluminium plate.

There are still a couple of niggling problems which I will get round to sorting out one day.  For instance the original self bailers let more water in to the watertight cockpit than they remove, so my feet are always wet. The in-mast jib halyard emerges from the mast foot in such a way that it is difficult to tension properly.  I'm considering making it external from a point just below the spreaders so that I can swig it up tight. (Edit: Now successfully modified).  Most importantly, because of the total lack of rowlocks, a rowing thwart, and a stowage space long enough for decent oars, it's impossible to row the boat in the event of flat calm and engine failure. Emergency propulsion consists of a long paddle at the moment.

In spite of the age of the design, and these very minor shortcomings, I like my Tricorn.  She is a fine, strong, and capable boat - with a top class pedigree!

UPDATE

Sailing performance:

Her performance under sail is excellent.  She is faster and more weatherly than most serious cruising dinghies of similar size, even many well-known highly regarded modern designs.  Her fittings and gear are strong, sound and serviceable.  The rig is simple and, on dry land, the mast can be raised and lowered singlehanded.  The new sails are of the highest quality.


Safety:

In very rough seas the closed-off cabin and self draining cockpit largely eliminate the risk of swamping.  The cockpit will free itself of water automatically within a couple of minutes while the boat sails on.  However, even in the unlikely event of a disastrous total flooding, Salvo’s hull contains enough buoyancy to remain afloat.

Salvo sails well under reefed sails.  In very severe conditions Salvo is capable of making safe harbour under sail with 3 reefs in the main and the small jib set, like a cutter’s staysail, well back from the stem head.


Practicality:

The Tricorn is designed for fast coastal cruising.  Relatively high freeboard helps shelter the crew from spray.

The lockable cabin provides permanent onboard dry storage.

The draining cockpit enables the boat to be left unattended on a mooring indefinitely.

Cockpit lockers are lockable and weatherproof.  The outboard motor can be stowed out of sight and out of the way in the lazarette.

The hull design offers good load carrying capacity for heavy camping or extended cruising equipment.

The electric outboard is powerful, ready for instant use without any starting problems, and has forward-neutral-reverse modes.


What are the weaker points?

Salvo’s cockpit drains let water in as well as out, so you often have wet feet.  Fitting new bailers that seal properly would probably solve this problem.


Cabin access is awkward through a small hatch.  It can be a tight squeeze for a person of average size, and requires flexibility and agility.  Once in, there is just enough space to shelter 2, maximum 3 persons, though, on the plus side, it is dry and warm and you don’t need a cockpit tent.


Pretty much like most other boats that don’t have a centreline outboard well, manoeuvring Salvo under outboard motor, transom-mounted on the starboard quarter, can be tricky.  The turning circle is large unless the plate is down, the rudder becomes ineffective at low speed, and the bows tend to blow off.  The outboard prop can come out of the water and lose traction if there is a man on the foredeck.


The Tricorn is initially a relatively “tippy” boat for its size.  Onboard you need to trim correctly and not jump about.  On the other hand, once sailing, she feels steadier and her generous freeboard means you would have to be very, very clumsy or very unlucky indeed to suffer a capsize.


Salvo is now equipped for sculling when necessary for brief harbour manoeuvres!



Salvo at La Semaine du Golfe du Morbihan, 2019


Tricorn Sailing Dinghy
Designed by Illingworth and Primrose, 1962
Built by Martin Goacher Ltd.

LOA:  16ft 6in (5m03)
LWL:  15ft (4m57)
Beam:  6ft 2in (1m87)
Draft:  9in (0m22) plate up, 5ft 3in (1m60) plate lowered.
Air draft:  24ft 6in (7m46)
Sail area:  139 sq ft (12.91sqm)
Weight in sailing trim (inc. rig, sails and outboard motor) approx. 580lbs (263Kg)

Link: http://bursledonblog.blogspot.co.uk/2012/05/tricorn-dinghy.html

Friday 8 May 2015

Cornish Cormorant - Tosh

This is my own and favorite dinghy Tosh, built by the original Cornish Crabbers down in Rock across the Camel estuary from Padstow, in 1983.


Designed by Roger Dongray I like to think of her as very much a modern adaptation of the traditional America Beetle catboat. Modern designed foils, minimised wetted surface and a high aspect gaff sail all combine to give her good performance, but what makes her really special is she's just a joy to sail.


At 350lbs she's no light weight, but stable, forgiving just the thing for a family day sail and a picnic, when you can be sure no one is going to get frightened if it blows up and you won't loose the sandwiches overboard. When the wind pipes up she will lay hove to gently while I effortlessly pull in a reef. And in strong winds she will even give a Mirror dinghy a run for it's money as we did in Bart's Bash last year.


There's a great write up here from the early 80's.


Shown here on her combination launch and road trailer, I keep trying to think about ways to improve her, but frankly Roger Dongray did such a good job there's not anything I'd alter. The un-stayed mast is easy to step even on my own, and I can have the sail laced on and be sailing in minutes.

One of the coolest things is being able to sail her backwards off the club slipway and past the dock when the wind is is the right direction, especially is there's an audience watching from the terrace.


Tuesday 28 April 2015

Ingrid 38 - Spiritus

William Atkin's study on the Colin Archer type, the Ingrid 38 has featured on 1001 Boats previously , and as one of my favorite cruising yachts I have no hesitation about a second post, which was prompted by an email from Russ and Carolyn Harper.


In Russ's own words, "You posted a couple of photos of our boat "Spiritus", which is an Ingrid 38. When you took the photos, we had just purchased her and she was still in very rough condition. We have restored her fully and are now sailing her in Mexico. I would like to offer a couple of photos for your use of her in her current restored condition."


I think we all agree that Spiritus looks fine indeed and especially so under sail in such beautiful surroundings.


It's been a few weeks since I received the photo's at the time, Russ and Carolyn were heading to Barra de Navidad  in Mexico, it's well worth visiting their blog for an account of their cruise.

Thanks for getting in touch and sharing your story with us.
